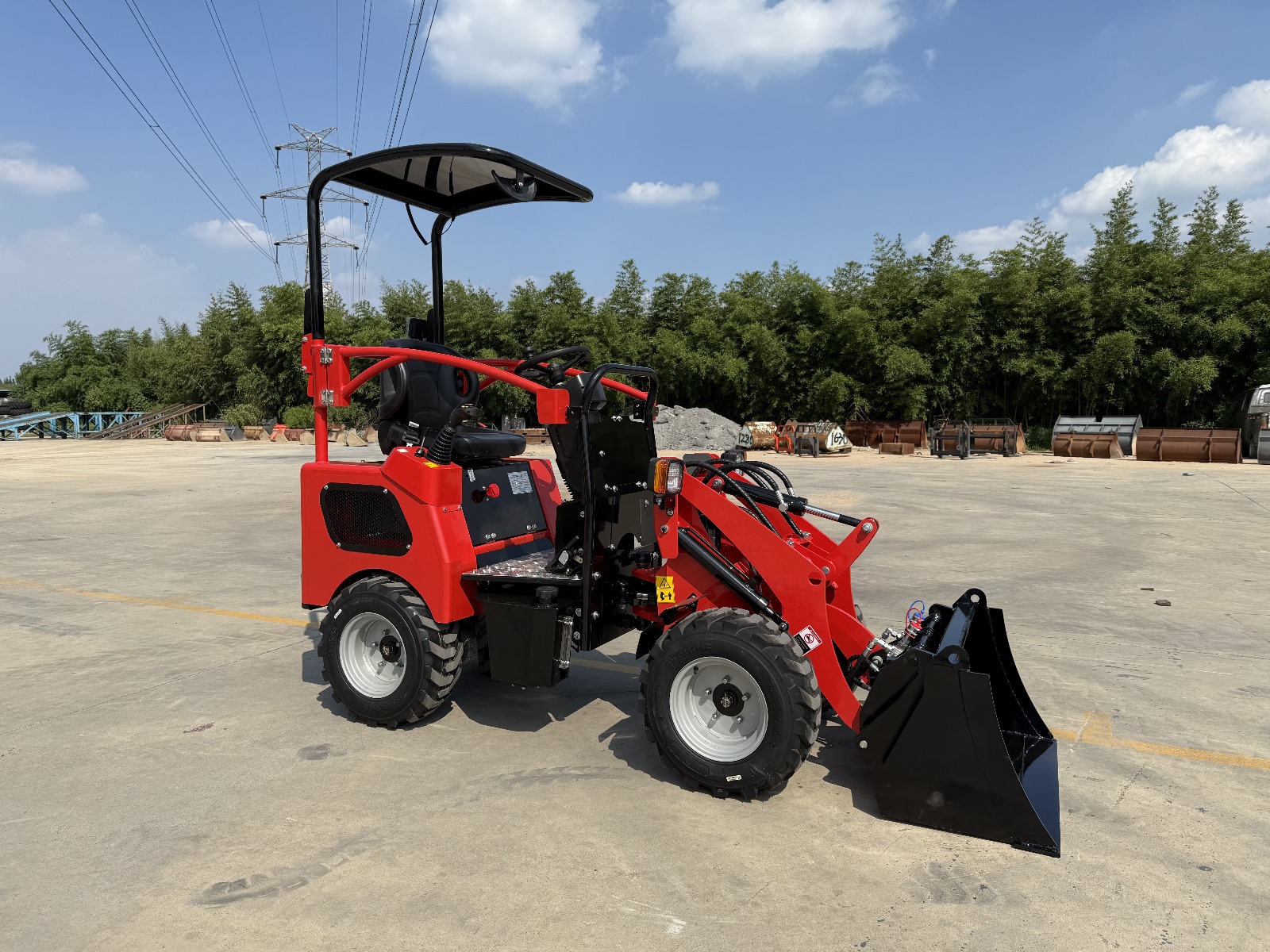

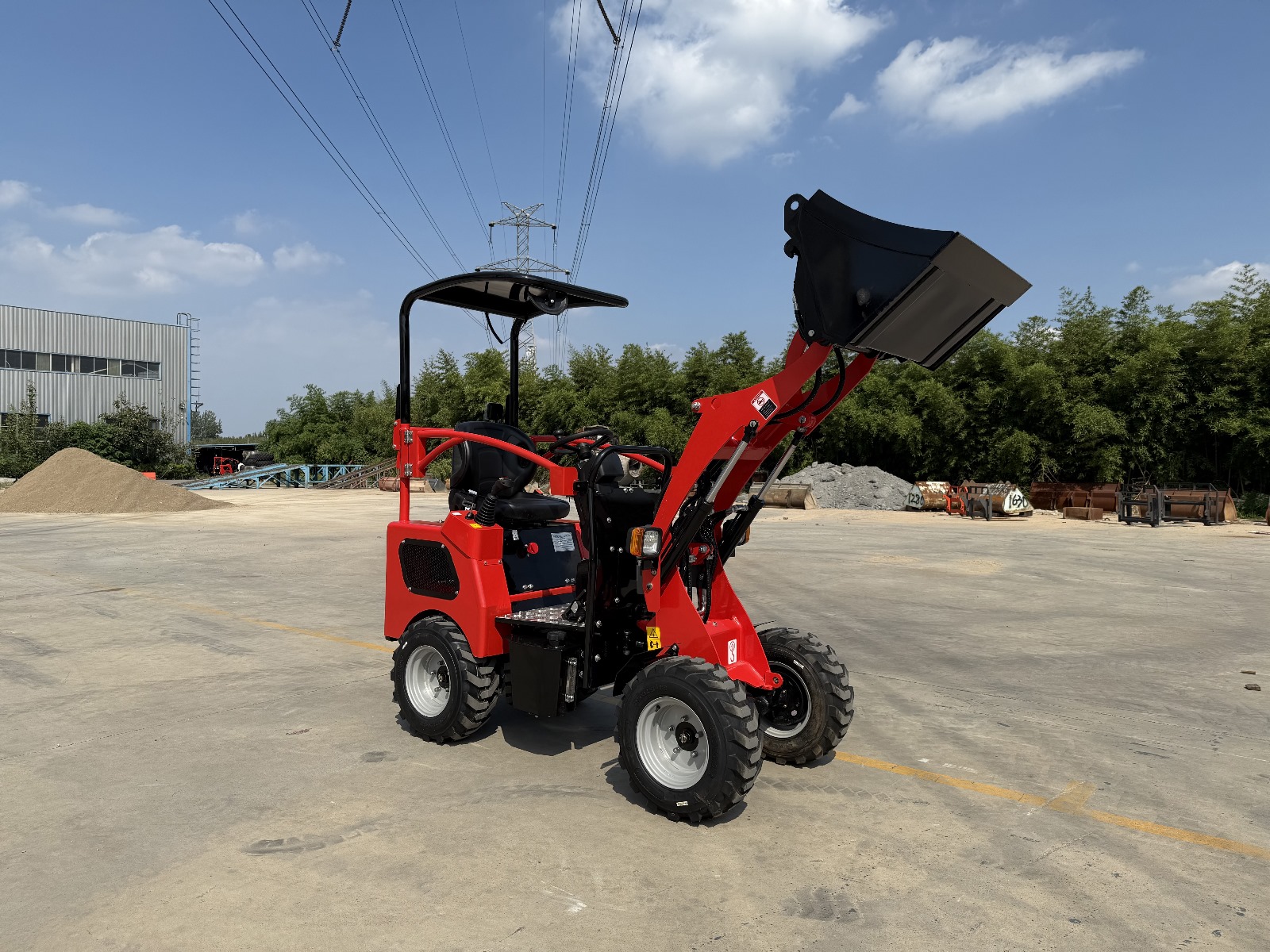

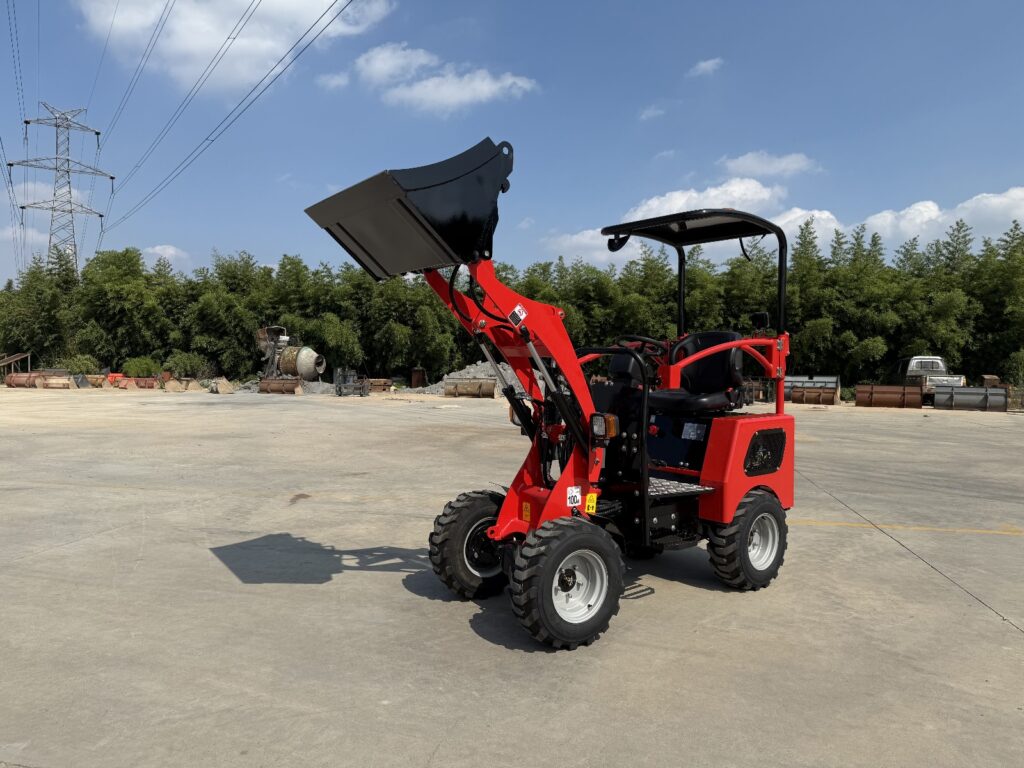

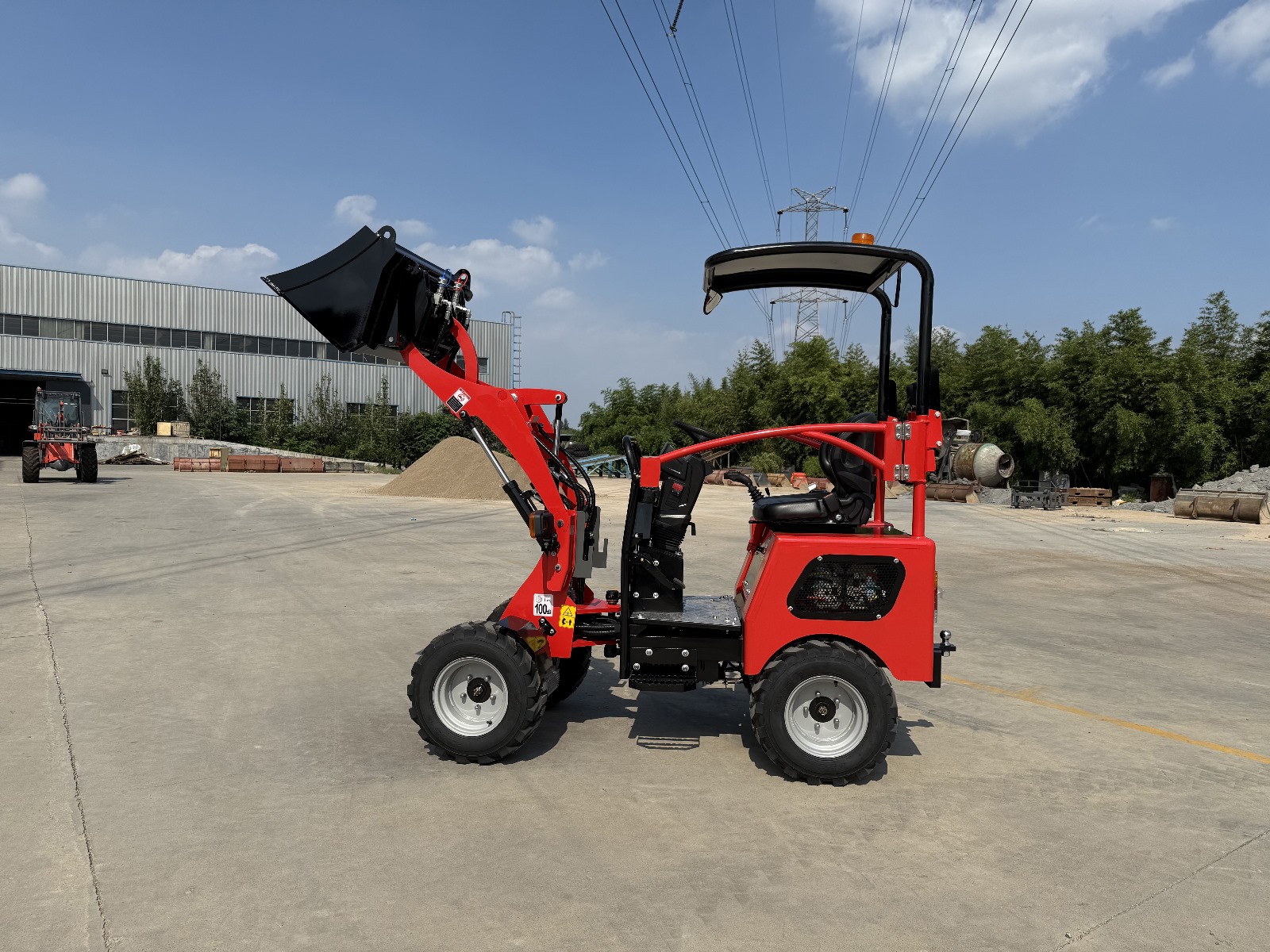

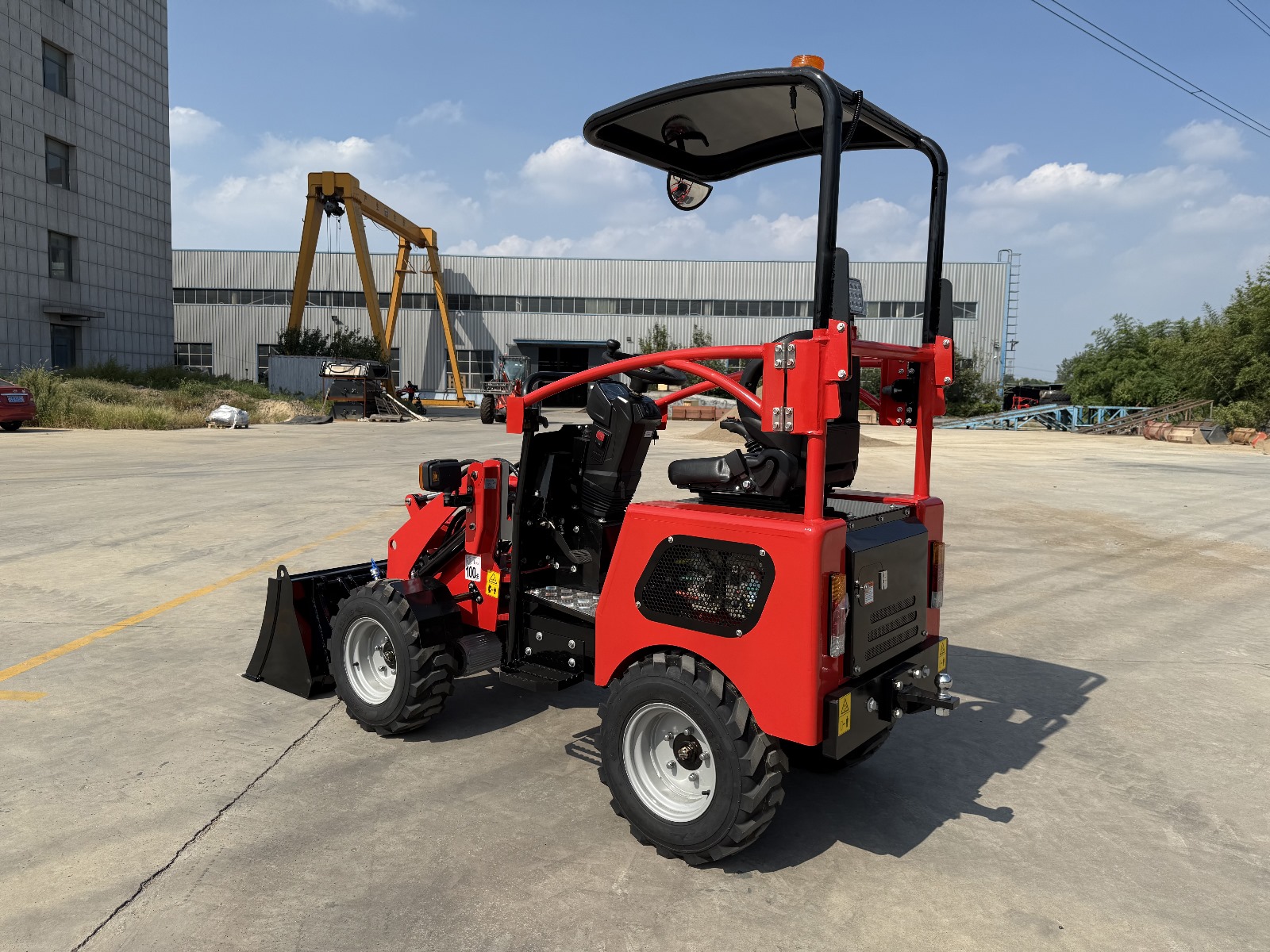

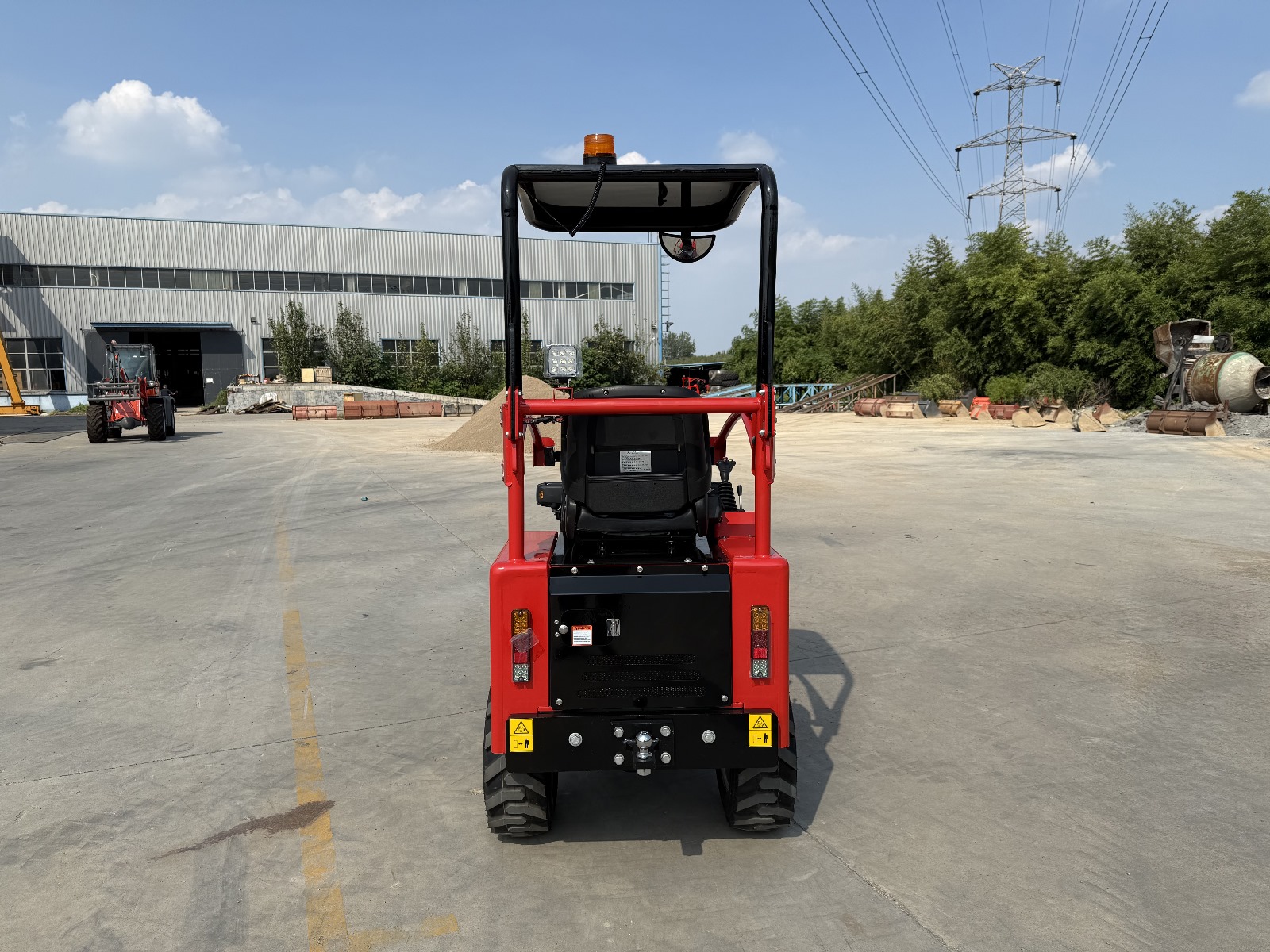

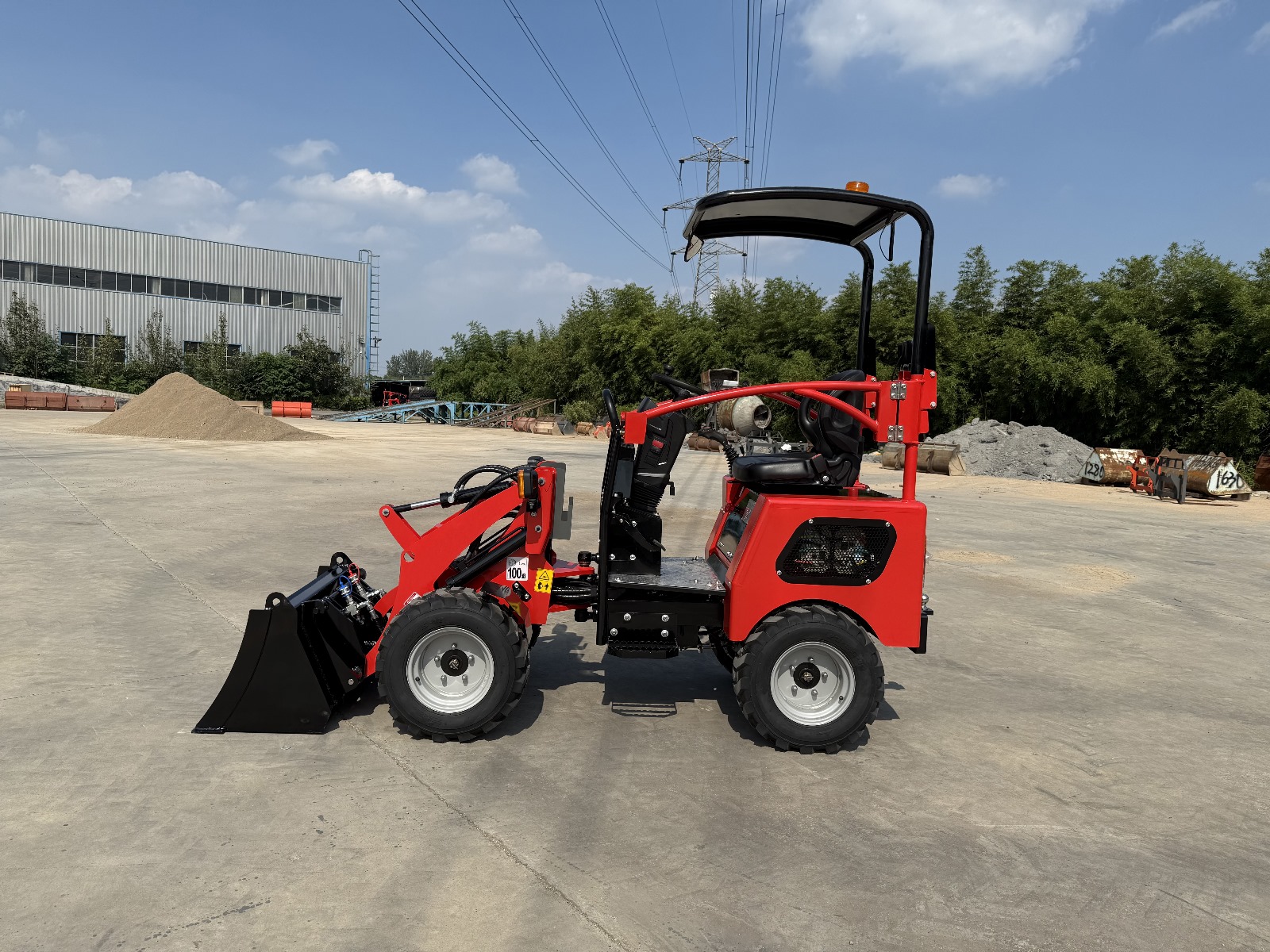

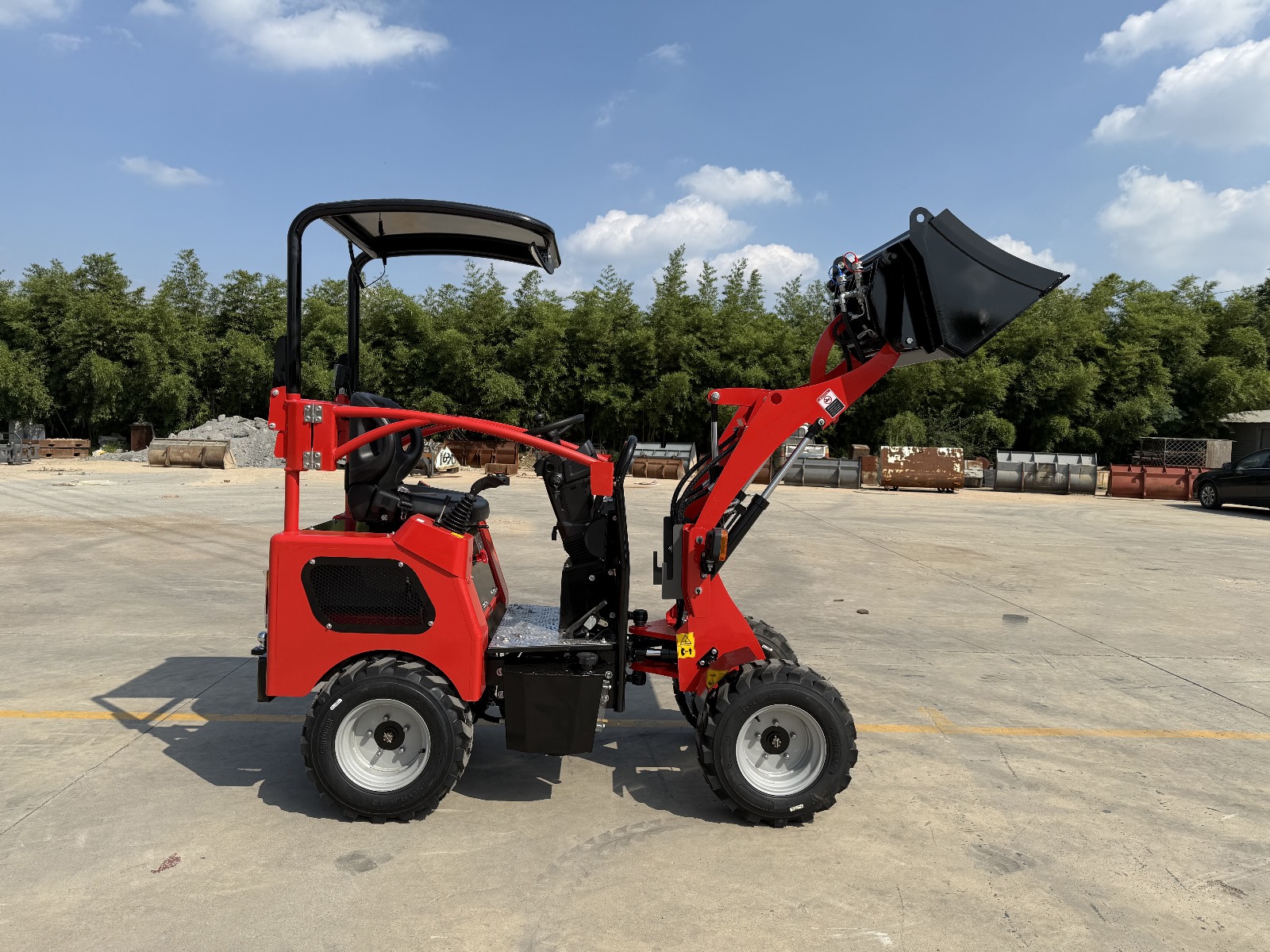

The RTL 909 Electric Loader is a powerful and compact 900 kg loader designed for sustainable and versatile

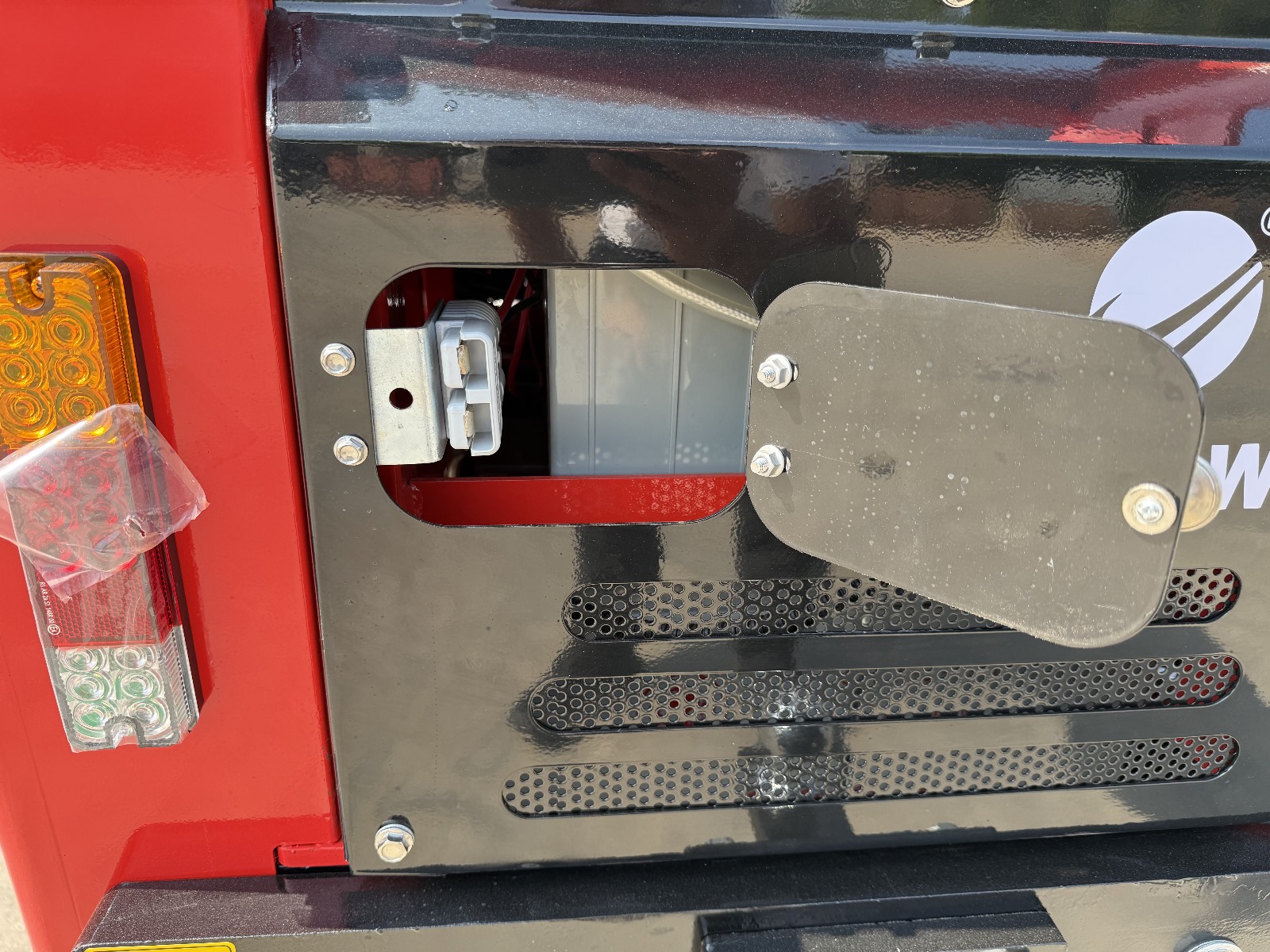

performance. Powered by a 60V lead-acid battery system, the 909 offers over 5 hours of runtime on a single charge
and delivers efficient, low-noise, and zero-emission operation. With mid-articulation steering, a 500 kg rated load, and
a 0.2 m³ bucket, it is ideal for construction, agriculture, landscaping, and urban material handling. The RTL 909
combines maneuverability, lifting power, and operator-friendly design in a compact electric package.
Zero emissions – fully electric with lead-acid battery system.
Compact 900 kg design with excellent maneuverability
5+ hours runtime for continuous operation.
Mid-articulation steering for tight turning radius and flexibility.
500 kg rated load and 0.2 m³ bucket capacity.
Low noise and vibration for urban and indoor applications.

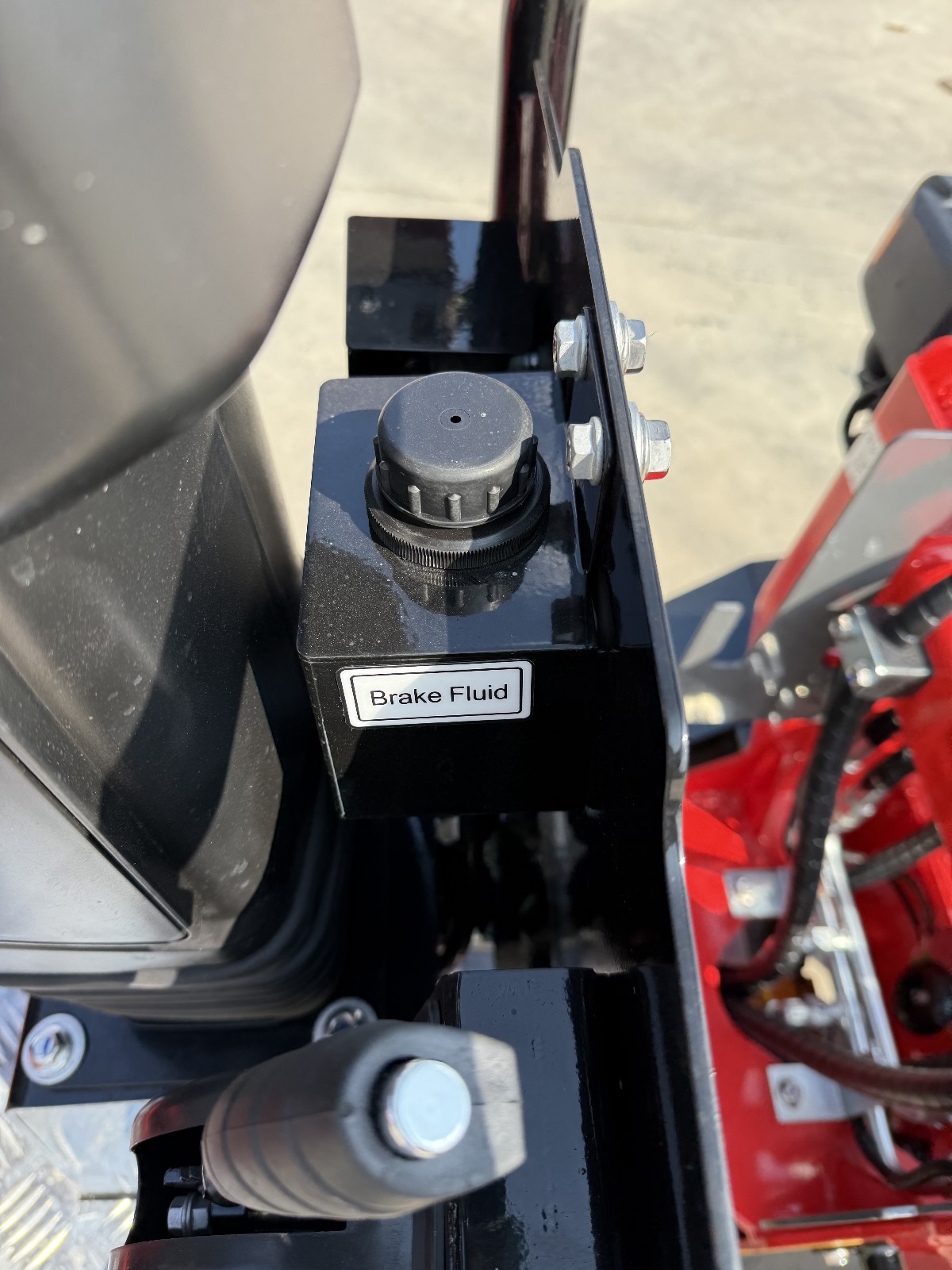

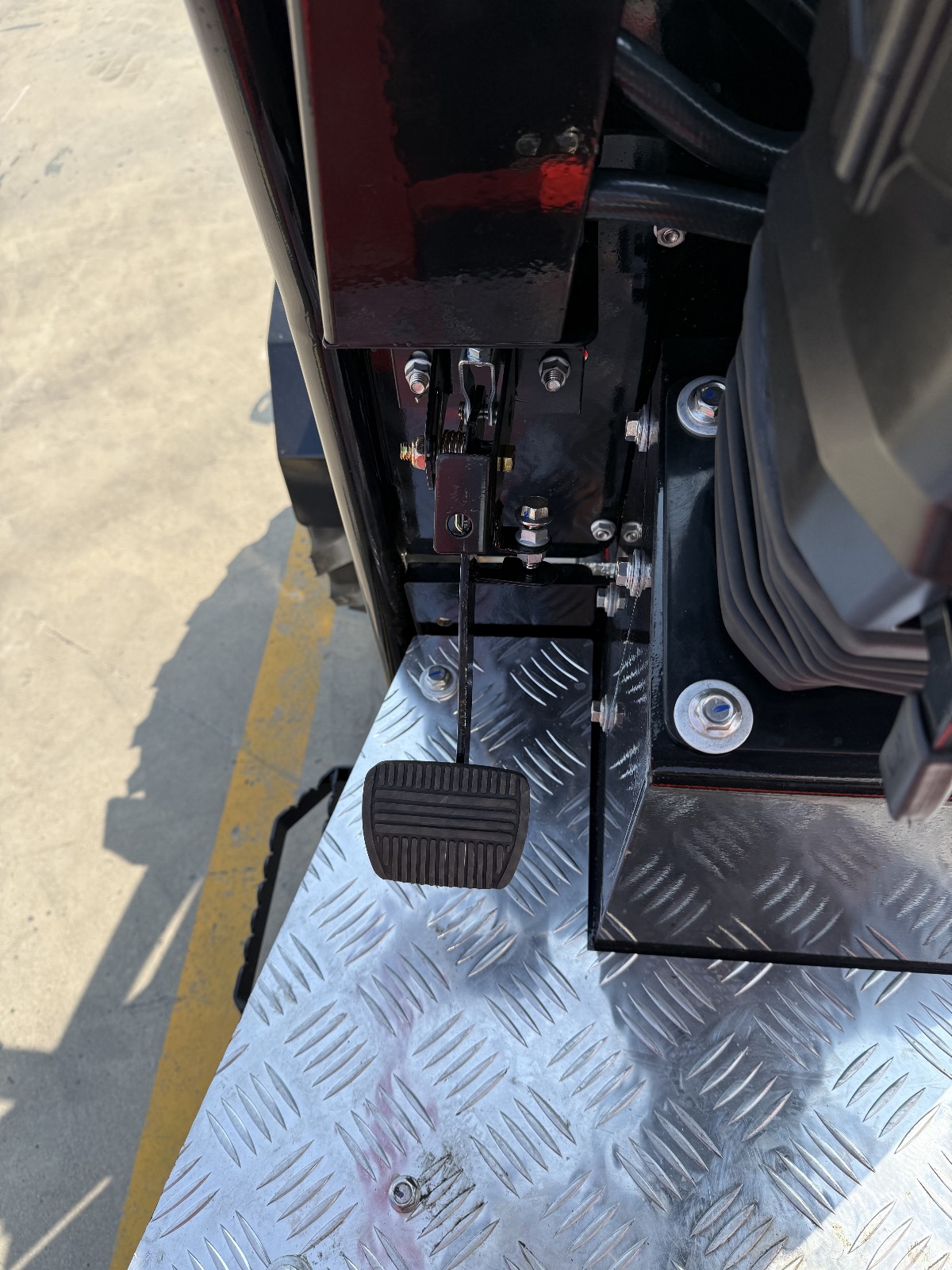

Drum brake system for reliable stopping power.
Battery model | 6-EVF-150A Lead-acid |
Battery capacity | 150Ah |
Number of batteries | 5 units |
Voltage | 60V |
Power | 1200W |
Runtime | 5+ hours |
| Operating weight | 900 kg |
Total length | 2836 mm |
Total width | 900 mm |
Total height | 2110 mm |
Wheelbase | 1385 mm |
Ground clearance | 300 mm |
Turning radius | 6900 mm |
Load capacity | 500 kg |
Bucket capacity | 0.2 m |
Tipping height | 1300 mm |
Lifting height | 2100 mm |
Breakout force | 8 kN |
Max slope | 15° |
Working pressure | 0.25 MPa |
System pressure | 16 MPa |
Steering system | Mid-articulation steering |
